Troubleshooting GC Column Bleed and Peak Shape

Identify the Symptom Before Changing Parts

Distorted peaks and elevated baseline noise are common complaints in gas chromatography. These issues usually point to a physical problem in the column or a setup error in the flow path. Before replacing a column, verify the symptoms. A flat, noisy baseline suggests contamination or a leak. Tailing or fronting peaks often indicate a mismatch between the column chemistry and the sample. Peak broadening can result from a blocked column or a worn liner.

Start by running a blank solvent. Inject the same solvent used for sample dilution directly into the system. If the baseline is flat and the peaks are sharp, the problem is likely in the sample preparation. If the baseline is noisy or the peaks are distorted in the blank, the issue is in the column, liner, or oven. This first step saves time and prevents unnecessary parts replacement.

Consider the solvent choice carefully. A blank that contains volatile impurities from the solvent bottle itself will mimic a column bleed. Use a certified high-purity solvent for troubleshooting. If the noise disappears with a different solvent, the original reagent is the source of the contamination. This isolates the variable and directs the repair toward the supply chain rather than the hardware.

Common Causes of Column Bleed and Peak Shape Issues

Column bleed occurs when volatile compounds from the column coating migrate into the carrier gas. This creates a rising baseline or a high background signal. Peak shape issues, such as tailing or fronting, usually stem from interactions between the analyte and the column surface. The table below lists common symptoms, likely causes, and the specific actions to take.

Symptom	Likely cause	What to do
Noisy, rising baseline	Column bleed or contamination	Run a high-temperature purge cycle to clean the column. Replace the liner if noise persists.
Tailing peaks	Active sites on the column or sample contamination	Check the liner material. Switch to a deactivated or fully coated liner. Ensure sample is free of acids or bases.
Fronting peaks	Column temperature too high or flow rate mismatch	Verify the oven temperature setpoint. Check the carrier gas pressure and flow rate against the column specifications.
Broad, asymmetric peaks	Blocked column or worn liner	Inspect the liner for damage. Replace the liner and column if the problem is not resolved.
Baseline drift	Carrier gas pressure fluctuation or oven instability	Check the gas regulator and pressure gauge. Ensure the oven door is closed and the heating element is functioning correctly.

A rising baseline is often mistaken for a leak, but it is frequently caused by the column coating itself. The stationary phase has a finite volatility. As the temperature rises, more of the coating evaporates into the carrier gas stream. This effect increases with temperature and is normal for most stationary phases. If the baseline rises significantly above the expected level, the column may be degraded or the temperature may be exceeding the rated limit.

Tailing peaks are particularly troublesome because they obscure co-eluting components. They often occur when acidic or basic compounds bind to active sites on the column wall. The sample may contain trace amounts of sulfuric acid or sodium hydroxide, even if the bulk concentration is low. These compounds react with silanol groups on the uncoated silica surface, trapping the analyte and pulling the peak tail.

Check the Liner and the Column End

The liner is the first point of contact for the sample. A damaged or contaminated liner will distort peaks even if the column is healthy. Remove the liner and inspect it for physical damage, such as cracks or tears. Check the inner surface for dark residue. If the liner is discolored, it is contaminated. Replace the liner with a new one of the same material.

Liners come in different materials. Inactivated silica is standard for general analysis. Fully coated liners, often called deactivating liners, have a layer of polymer applied to the inner wall to block active sites. This is preferred for basic samples or when using a capillary column that is sensitive to acid-base interactions. If you switch liner materials, ensure the new liner fits the injector port dimensions correctly. A loose fit creates a dead volume that broadens peaks.

The column end must be cut cleanly. A rough or jagged cut will create a pressure drop and cause peak broadening. Use a sharp, clean knife to cut the column to the correct length. The cut end should be flat and smooth. Do not use a saw or a rotary cutter, as these create burrs that trap sample molecules. If the column is old, the inside may be contaminated. A high-temperature purge can remove some contamination, but it will not fix a physically damaged column.

Inspect the column body for cracks as well. A small crack near the end can cause a pressure drop that is difficult to detect with a simple gauge. Leak the column in a solution of water and a small amount of dish soap. Bubbles will form at the location of the leak. If a crack is found, replace the column. A small leak can introduce air into the system, causing erratic baseline noise and peak distortion.

Verify the Oven and Carrier Gas Settings

The column oven temperature is critical for peak shape. If the oven is not at the correct temperature, the analyte will not elute correctly. Check the oven temperature with an external thermometer. Compare it to the setpoint. If there is a significant difference, the oven heating element or thermostat may be faulty.

Insert a calibrated digital thermometer into the oven cavity. Place it near the column port, not at the back wall. The temperature in the oven cavity can vary by several degrees from the setpoint. If the oven runs hot, the analyte elutes too quickly, reducing resolution. If the oven runs cold, the analyte stays in the column longer, causing peak broadening and tailing.

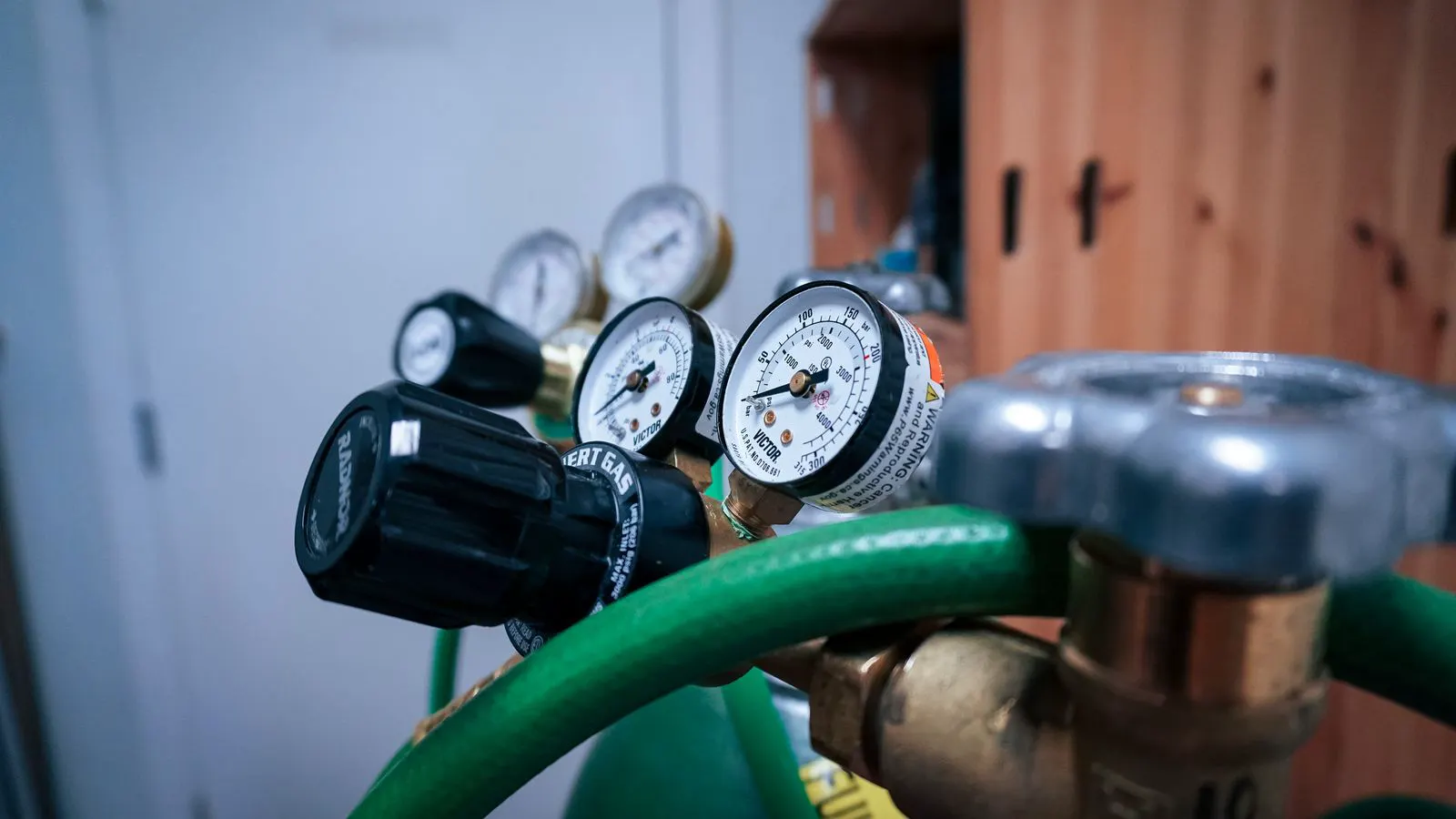

The carrier gas flow rate must match the column specifications. A flow rate that is too high will reduce resolution and broaden peaks. A flow rate that is too low will cause peak tailing. Use a gas flow meter to verify the flow rate. Adjust the carrier gas regulator to match the target flow rate. Check the pressure at the column outlet. A significant pressure drop may indicate a blockage.

Use a digital pressure gauge connected to the column outlet. The pressure should be stable. A fluctuating pressure indicates a problem with the gas supply or the regulator. If the pressure is lower than expected, there may be a blockage in the column or a leak in the system. A blockage will cause a pressure drop across the column. A leak will cause a pressure drop across the entire flow path.

Perform a High-Temperature Purge Cycle

A high-temperature purge is the standard method for removing volatile contaminants from the column. Set the column oven to a temperature higher than the maximum operating temperature of the column coating. A common approach is to heat the column to 250 degrees Celsius for 10 to 15 minutes. Keep the carrier gas flowing. This will burn off or evaporate the contaminants and return the baseline to a flat level.

Before starting the purge, check the column manufacturer’s specifications for the maximum temperature. Exceeding the rated temperature can permanently damage the stationary phase. Some coatings are stable at 300 degrees Celsius, while others degrade at 250 degrees Celsius. Use the maximum temperature listed in the column data sheet.

After the purge, allow the column to cool to the operating temperature. Run a blank solvent to check the baseline. If the baseline is flat and stable, the purge was successful. If the baseline is still noisy, the column may be permanently contaminated or damaged. Replace the column.

Monitor the baseline during the purge. It should start high and gradually decrease as the contaminants are removed. If the baseline remains high or increases, the problem may be in the column coating itself. This indicates that the coating is degrading and that the column is near the end of its life.

Prevention and Maintenance

Prevention is the best way to avoid GC troubleshooting. Follow these steps to extend column life and maintain peak shape.

1. Store the column in the oven at a low temperature. This keeps the coating from degrading and prevents the column from drying out.
2. Use the correct liner material. A deactivated liner is suitable for most applications. A fully coated liner is better for acidic or basic samples.
3. Keep the sample preparation clean. Use clean glassware and solvent. Avoid introducing particulates or heavy metals into the sample.
4. Check the column pressure regularly. A sudden increase in pressure may indicate a blockage. A sudden decrease may indicate a leak.
5. Replace the liner regularly. The liner is the part that takes the most wear. Replacing it every few months is a cheap insurance policy.

Store the column in the oven at a temperature of 40 to 60 degrees Celsius. This temperature is low enough to prevent degradation but high enough to keep the coating flexible. Do not store the column at room temperature for long periods. The coating can dry out and become brittle, leading to cracks when the column is reinstalled.

Use clean glassware for sample preparation. Rinse the vials with the same solvent used for the analysis. This removes any residual contaminants that could interfere with the analysis. Avoid using plastic vials for volatile compounds, as the compounds can adsorb to the plastic walls. Use glass vials with PTFE-lined caps to prevent loss of volatile analytes.

When to Replace the Column

A column has a finite lifespan. Even with good maintenance, the coating will degrade over time. The peak shape will gradually worsen. The tailing factor will increase. The baseline may become noisier. If the peak shape is outside the acceptable limits for your application, replace the column.

Do not try to fix a worn column. A new column will give you sharper peaks and a cleaner baseline. The cost of a new column is small compared to the time spent troubleshooting. Keep a log of column installation dates and performance. This will help you predict when a column needs replacement.

Track the tailing factor of a standard peak in your routine analysis. If the tailing factor increases by more than 10 percent over a few weeks, the column is degrading. This is a warning sign that the column should be replaced soon. Do not wait until the peak shape is unacceptable. Replacing the column at the first sign of degradation ensures consistent peak shape and reliable results.

Final Checks

Before starting a new run, check the following:

• The column is installed correctly and the end is cut cleanly.
• The liner is clean and the correct material.
• The oven temperature is stable and matches the setpoint.
• The carrier gas flow rate is correct.
• The sample is free of contaminants.

These checks take only a few minutes. They will prevent most peak shape and column bleed issues.
